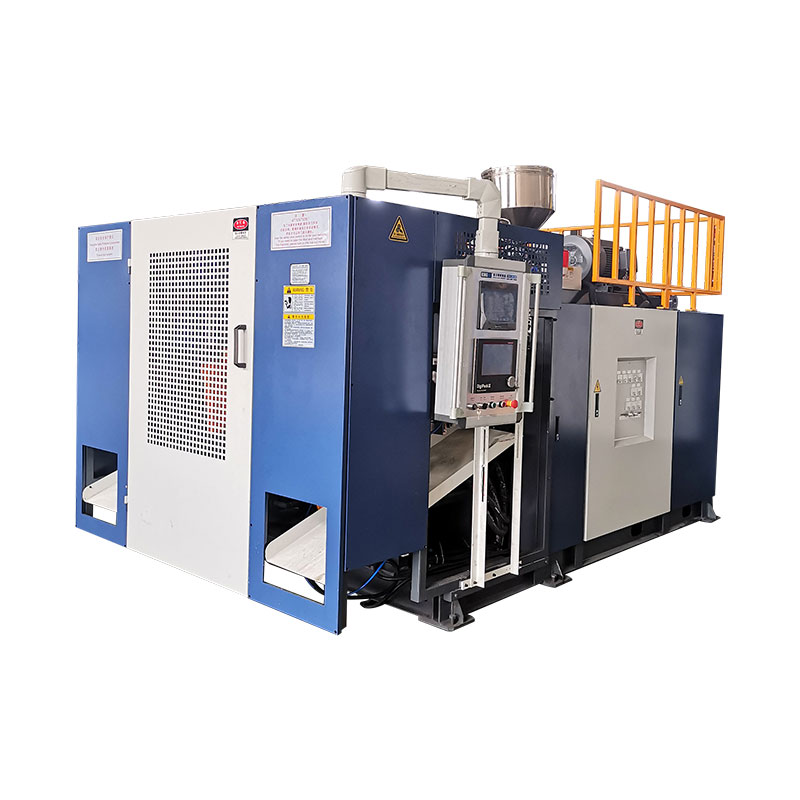

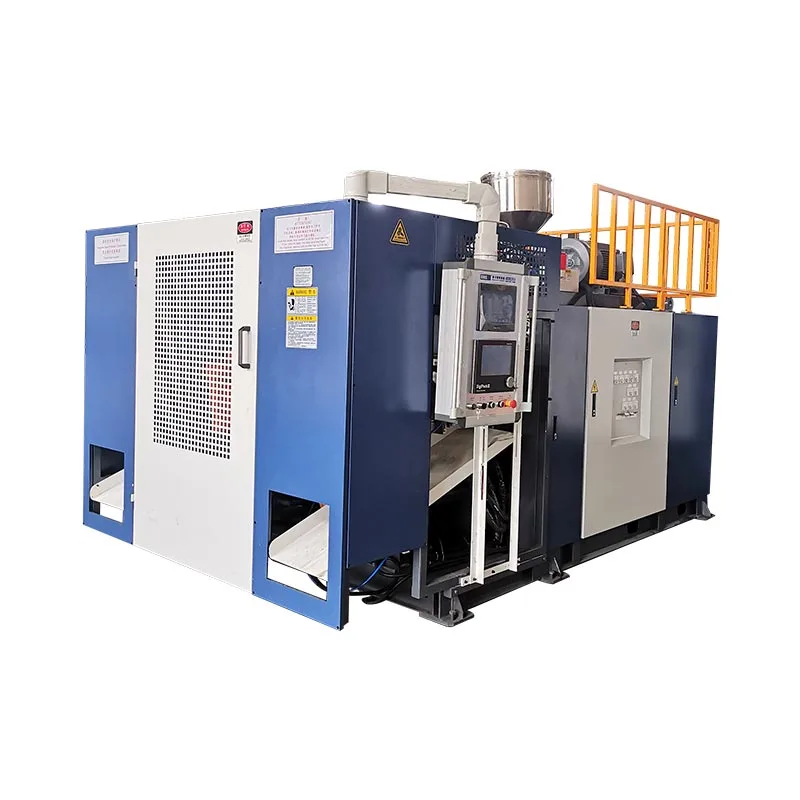

5L Ganda Stasion Blue Blok Mesin Mesin

Model:KGB5D

Maksimalkeun produksi anjeun sareng stasiun gigir 1l kami Mesin tinggi pagelaran ieu nawiskeun konfigurasi lega, kalebet A 2, 3, atanapi 4 Dispup sirah Multi paéh, pikeun nampung sababaraha sirah anu mulih, pikeun nampung sababaraha ukuran wadah jandela.

Jilid: 5lBeurat: 5.2t

Kirim Pananya

Panjelasan Produk Specification Application

Ti botol politis leutik pikeun wadah 5l ageung, 5l ieu dua kali clowing nasib Mesin Mesin produksi efisien sareng kualitas konsisten. Cocog pikeun sagala rupa aplikasi, kalebet pakét cuci cuci cuck Ngaluarkeun kaluaran anu luar biasa sareng maksimalkeun balik deui investasi.

Fitur sareng Keuntungan

● Compét Tarjamahan Green
● Lemah sirah anu maot
● Sistem kontrol éléktronik ngoko kontrol plc Phc, sareng mesin manual mandiri méntab mempermashihan oponit sareng pangalihan.
● Bodol produk maksimum paling 5l, anu mangrupikeun alat cucuk niup pikeun produksi massa kurang ti 2-5l.
● Numutkeun ciri, éta tiasa kabagi kana lapisan tunggal, lapisan dua ganda, tilu lapisan, garis transparan, jsb.
● Sistem hidrolik nyimpen desain anu sanés, efisiensi sareng laju gancang

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
