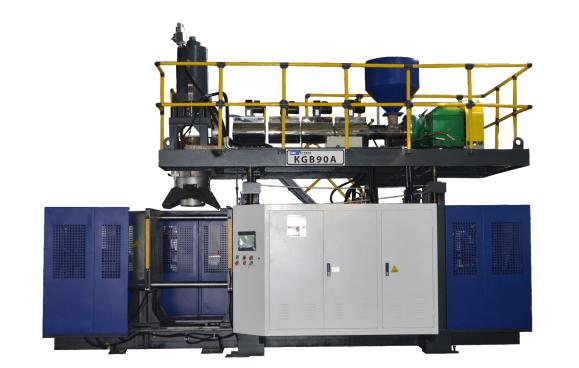

60l ngumpulkeun mesin catot

Model:KGB90A

Buka tetep ieu sareng nutup mesin cuping mesin niup, ningalikeun ganda batu binging batu tarik anu digucur sareng minyak streer témbok luhur sareng efisiensi. Ditaikan Sistem Serso hidralik pikeun réspon pilihan sareng 60 énergi, 60l ngumpulkeun anu nangtung glasiat dina ngahasilkeun anu leuwih lebar.

Jilid: 60lBeurat: 14t

Kirim Pananya

Panjelasan Produk Specification Application

Modél utama standar, anu cicing musékulisian kaluar mesin Gempunan, kalebet Kontrol 100 Kontrol Briska, panangan panangan, sareng kualitas ngahayakeun produk sareng kualitas produk. 60l ngumpulkeun mesin cangeng niup ku sagala rupa aplikasi, kalebet gres kimia niup leyur mancangan makhing, gambar, sareng obat-luhurna, sareng keratan lalaunan, sareng tanda patalina.

Fitur sareng Keuntungan

Modél ieu mangrupikeun bukaan kapang kaméra sareng jinis panutup, milih drog ganda ganda rod undhy ngarékam mékanisme dirit, sareng silinder notak
● Panyimpen silinder lauk sirah paéh
● Molume maksimal 60l

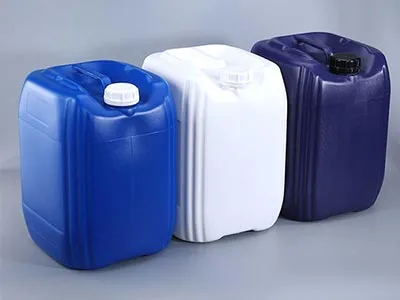

● Cocog tong kuncup kimia, cocooan ageung, bestfins mobil, jsb.
● Nganggo téknologi anu unik, kapang sistem pigturgizi, kakuatan clamping anu ageung, laju clamping gancang, daur produk pondok

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

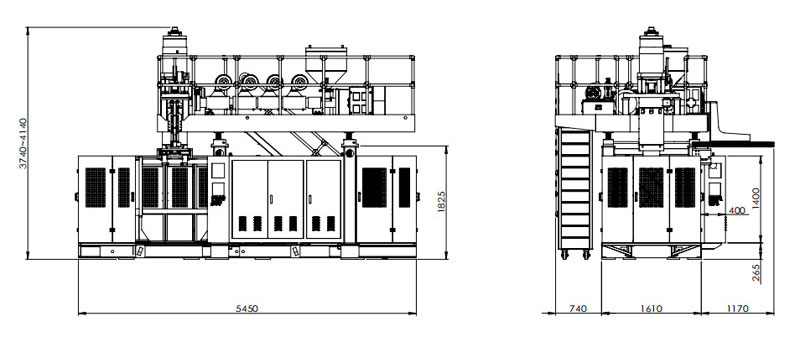

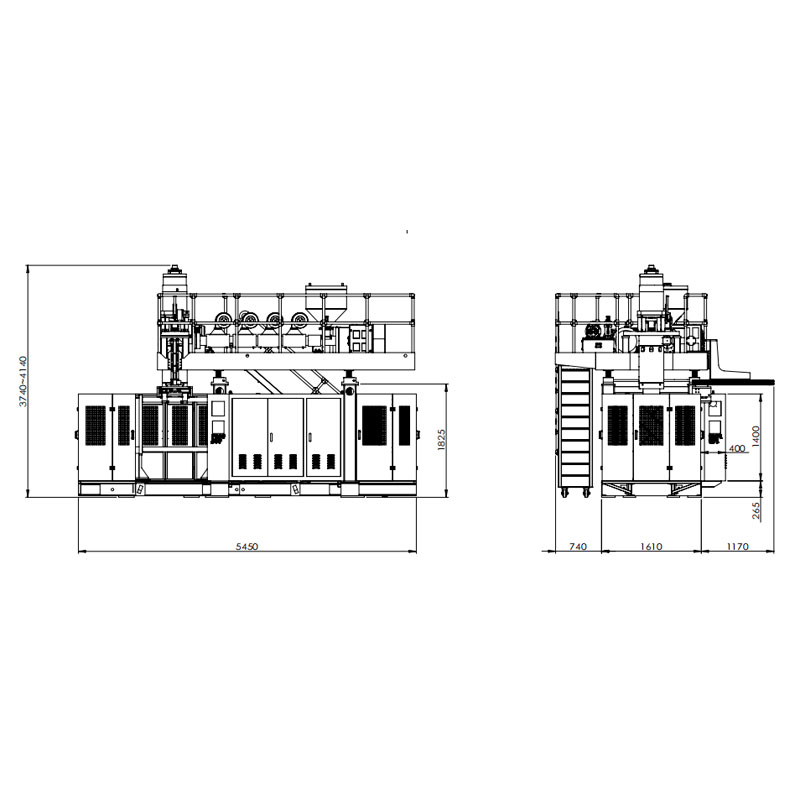

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
