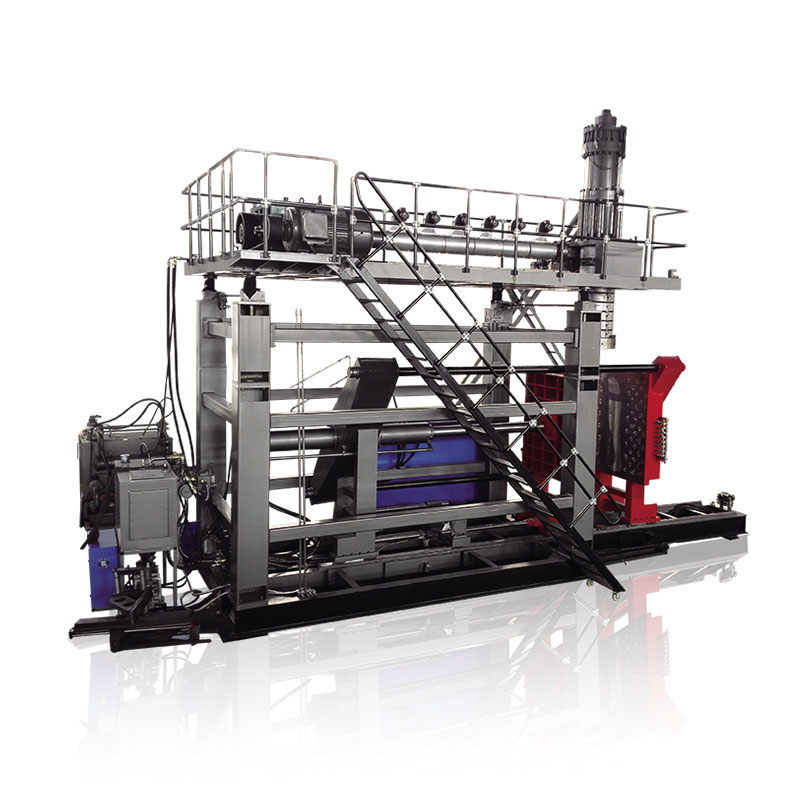

Tangki cai 1000L IBC ngumpulkeun mesin ciat

Model:KGB1000L- IBC

Pengalaman kakuatan sareng stabilitas tank cai IB1000X PBB1000l ngumpulkeun mesin cueng, anu pédah beurat umum ngalétkeun 55 ton. Rodeu ganda dantungan diagonal sareng tilu silinder sentral survel ngiringan cilaka, aktan produksi produk.

Jilid: 1000LBeurat: 55t

Kirim Pananya

Panjelasan Produk Specification Application

Ruang cai anu 1000L ATAWA ngumpulkeun mesin niup mesin niup ngalebetkeun prinsip téknologi ngadoples sareng biaya produk multi-lapisan sareng daya tahan. Cicta pikeun ngahasilkeun wadah kapasitas ageung, kalebet ngan ukur niiskeun aplikasi mesin mesin, mesin ieu dirarancang pikeun ngahasilkeun kendang organik, sareng seueur anu ageung. Hubungan kami ayeuna pikeun kutipan khusus sareng ngajelajah harga mesin cai kalapa kami.

Fitur sareng Keuntungan

Kasajuan umum tiasa ngahontal langkung langkung ti 55 ton, sacara efektif ngirangan geter sareng mesin mesin, sareng ngahasilkeun akurasi produksi sareng stabilitas.
● Rodasi ganda diagonal sareng club tilu-craping cramping, template, template langkung saé stres sareng henteu gampang cacad
● produksi multi-lapisan ngirangan biaya produksi sareng ningkatkeun daya tahan produk
● Cicih Pikeun Pabrikan Produks Bilastik gedé sapertos tukang menerage cai, tank neundeun setét, hiji wadah kimia, jeung sajerana

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

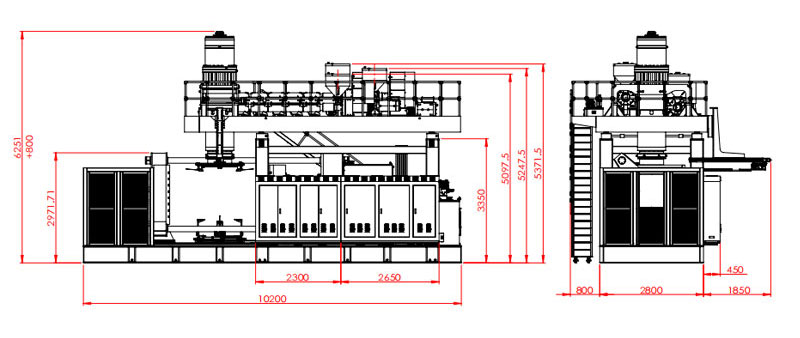

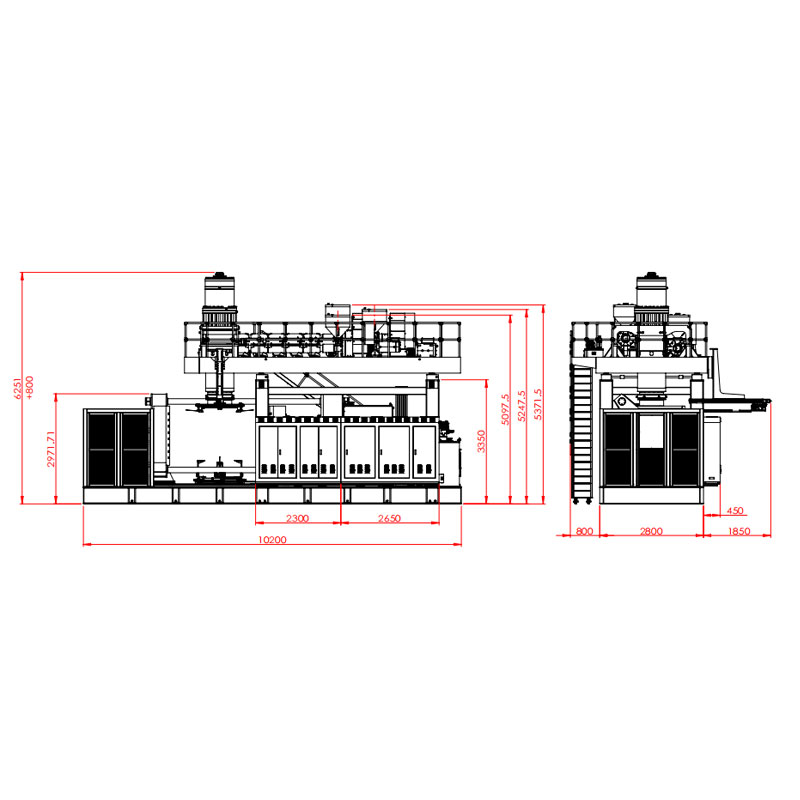

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
