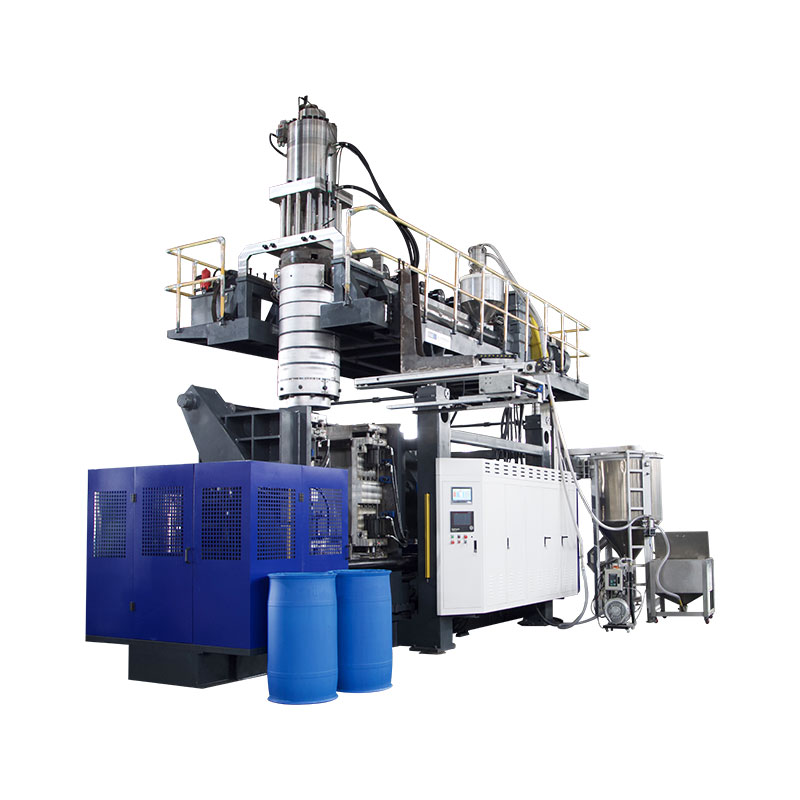

220 Gask plastik

Model:KGB200L

The DBB200l mangrupikeun 220 liter plastik palaksi cucuk mesin cupap, di phol di pasihan pikeun aplikasi mesin kerok bumi ngadamel bulaim biru. Pikeun 200 plas palastik palunis niup cucuk cucuk produke mesin, sapertos plant kimia sareng ngarendaman industri, éta mastikeun résistansi kimia sareng integritas struktural. Tiasa lulus 3 uji métrik meta pikeun kéngingkeun sertipikat un.

Jilid: 250LBeurat: 36t

Kirim Pananya

Panjelasan Produk Specification Application

Accumulator sirah maot, digabungkeun sareng unit Extruder anu luhur, Ngaluarkeun hasil anu luar biasa. Drap kendang Plastik Sasmar sistem pikeun efisiensi ditingkatkeun. Kendang anu ngahasilkeun kualitas stringent Standar, kaasup tés serelék 3-meter sareng kéngingkeun un Sertifikasi.

Fitur sareng Keuntungan

Ganda-Ganda-Ganda Counch Street Crandice Security Sanchinder
Ngahontal kapasitas produksi anu luhur ku desain éksternal sareng préparasi produsén, sanggup ngahasilkeun18 buah / jam

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB200L
Specifications
1	Max container capacity	250L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M×6.5 M
4	Machine weight	36T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x1500 MM
3	Platen openingstroke	800 MM -1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM ×1700 MM
6	Mold thickness	810 MM - 950 MM
Power
1	Servooil pump motor power	37 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	110(132) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
